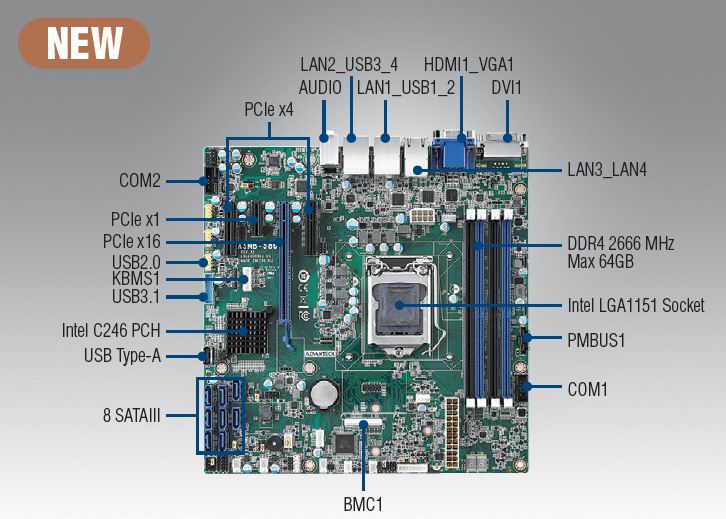

ASMB-586
LGA 1151 Intel® Xeon® E & 8th/9th
Generation Core™ MicroATX Server
Board with 4 DDR4, 4 PCIe, 6 USB 3.1,
8 SATA3, Quad/Dual LANs, IPMI
LGA 1151 Intel® Xeon® E and 8th/9th generation Core™ i7/i5/i3 processors
with C246 chipset
DDR4 ECC/Non-ECC 2666/2400/2133 MHz UDIMM up to 128GB
One PCIe x16, two PCIe x4 and one PCIe x1 slots
Triple displays - DVI-D, VGA and HDMI 2.0 ports
Eight SATA3 ports and six USB 3.1 ports
0 ~ 60° C ambient operating temperature range
Note: Supported OS including Windows 10 (64-bit) and Server 2016 (64-bit)
have been validated.
